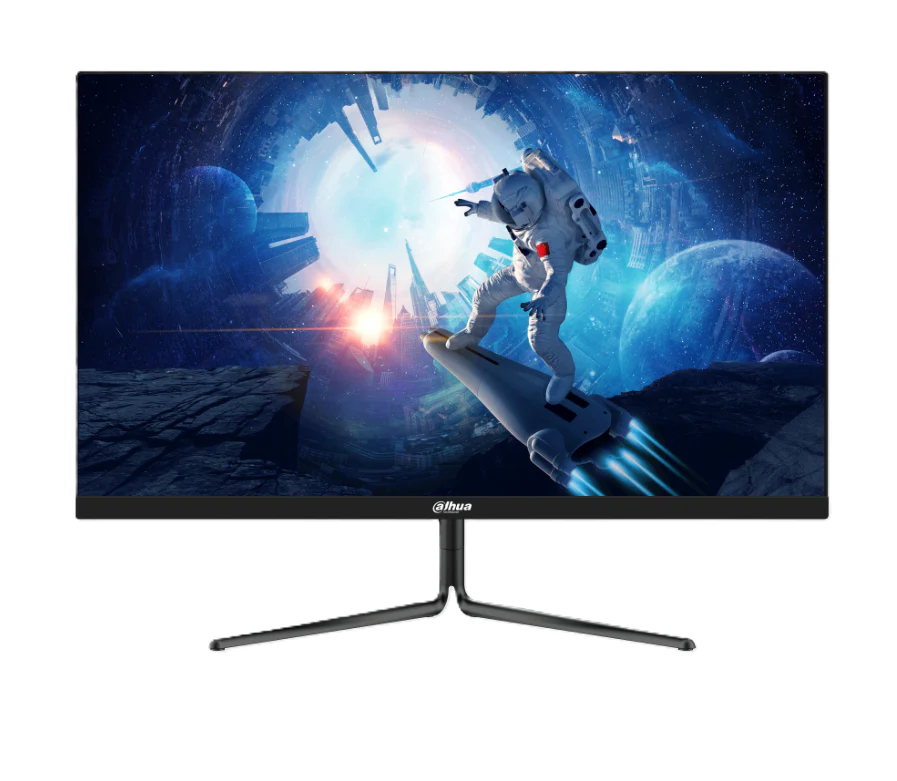

DAHUA 24" Gaming Monitor DHI-LM24-E231B

📌 Key Features

• Full HD resolution (1920 × 1080) for clear and vivid image quality

• IPS panel with 3-sided frameless design for immersive viewing

• Wide color gamut:
  　· 100% sRGB
  　· 85% NTSC
  　· 85% DCI-P3
  　· 80% Adobe RGB
  　(Meets designer-level color accuracy requirements)

• 178° wide viewing angles (H/V) for consistent image quality from all directions

• Adaptive Sync technology to eliminate screen tearing and stuttering

• Ultra-fast 1ms response time – no motion blur or ghosting

Technical Specification

Model

• Model Name: DHI-LM24-E231

Display

• Screen Size: 23.8"

• Panel Type: IPS

• Aspect Ratio: 16:9

• Resolution: 1920 × 1080 (Full HD)

• Backlight Type: E-LED

• Brightness (Typical): 300 nits

• Contrast Ratio: 1000:1

• Color Gamut:
  　· 100% sRGB
  　· 85% NTSC
  　· 85% DCI-P3
  　· 80% Adobe RGB

• Viewing Angle (H/V): 178° / 178°

• Response Time (Max): MPRT 1ms

• Refresh Rate (Max): 180Hz

Signals & Interfaces

• DisplayPort 1.2 ×1

• HDMI 1.4 ×2

• Audio Out ×1

General Information

• Power Supply: DC 12V / 2.5A

• Power Type: External Adapter

• Power Consumption:
  　· Typical: 23W
  　· Max: 33W
  　· Standby: <0.5W

• Tilt Angle: -5° ±2° / 15° ±2°

• Swivel / Pivot / Height Adjustment: N/A

• VESA Mount: 75 × 75 mm

Dimensions & Weight

• Dimensions (without stand): 539.6 × 321.3 × 64.6 mm

• Package Dimensions: 649 × 172 × 443 mm

• Net Weight: 3.9 kg

• Gross Weight: 5.6 kg

Work Environment

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Humidity: 10% ~ 85%

Accessories (Included)

• DP Cable

• Power Adapter

• Stand

• Base
